How Small Demand or Delivery Pumps Work
Demand or Delivery Pumps are pumps used to send water from a storage tank to a point of use. Typical applications for demand pumps are to send water from a non-pressurized tank to a water vending machine or to increase water pressure from an undersink reverse osmosis unit to a refrigerator or icemaker that it is supplying.
When there is a "demand" for water, the pump comes on and supplies it. When the demand is removed, the pump shuts itself off.
When you push a button to fill a water bottle from a supermarket's water vending machine, the button-push activates a solenoid that opens a closed valve in the water line. When the valve is open, the pump senses a demand for water and comes on. It pumps water through the open line until you release the button, closing the solenoid-controlled valve and shutting off the demand. Closing the valve causes pressure to build in the delivery line and the pump senses the pressure and stays off until there is another demand for water.

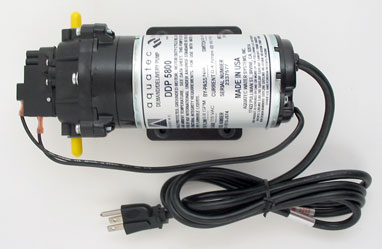

In the pump pictured above, the water line is installed in the ports marked by the yellow fitting protectors. The pressure switch is the appendage at the extreme left in the picture. It simply shuts off the pump's electrical supply when water pressure builds builds in the water line.
Small demand pumps are usually trouble free operators, but in some installations a pump tank should be added to assure smooth operation. Without a tank to provide constant back pressure for the pump's pressure switch, a phenomenon called "pump chatter" sometimes occurs. If the pressure drops slightly, the pump has to turn on briefly to renew the pressure when no demand for water has been made. Installation of a pump tank prevents this constant on/off cycling and also provides more water in storage and protects downstream plumbing and appliances from the shock of sudden pressure surges. A demand pump, while not always essential, improves the performance of virtually any demand pump installation.
Demand pumps are versatile tools that can also be used to send water to a car wash location, a fish pond, or a hot tub. They are sometimes used to move water from a non-pressurized distiller tank to a sink-mounted spigot. They work anywhere a pump is needed to move water to a point of use.
The illustration below shows a demand pump installation on an undersink reverse osmosis unit designed to send pressurized water to a remote refrigerator or icemaker. This is a good design, but there are many other placement options.
|The pressure tank at right is the RO unit's regular storage tank. The tank at left is an additional "pump tank" added to smooth out the pump's operation and to provide extra storage. Water in the second tank is available for both the kitchen ledge faucet and the refrigerator. A check valve (one way valve) built into the pump head prevents migration of water back to the RO unit.|
